Switchboard

Switchboard is an ultra-low-latency, zero-password encrypted control bridge that allows you to manage and control your host computer system directly from your mobile device.

Switchboard Desktop Host

:::tip Download Switchboard Official binaries for Windows (Desktop Host + Go Daemon) and Android (Native APK) are published on GitHub Releases:

What's in these Docs​

  • Product Overview & Capabilities — Product vision, system architecture comparison with traditional tools, hardware compatibility, and phase milestones.
  • App Features Showcase — Comprehensive visual deep-dive with screenshots into Displays, Audio Mixer, File Transfer, Air Mouse, Stream Deck Neo, and Security.
  • Download & Installation — End-user installation guide from GitHub Releases, desktop setup, Android sideloading, and first-time pairing.
  • Contributor & Developer Setup — Complete codebase setup, monorepo architecture, inner-loop development (pnpm dev, Android Studio), and build pipeline.
  • System Architecture & Topology — Monorepo layout, Go backend daemon, Electron desktop host, native Android client, and WebSocket packet flow.
  • Host Discovery (mDNS / DNS-SD) — How the desktop advertises _switchboard._tcp\ and how the Android app automatically discovers changing network IPs without cloud intermediaries.
  • Security & Pairing Protocol — Zero-password trust model via ephemeral X25519 ECDH key exchange, QR code payloads, and AEAD encryption (AES-256-GCM / ChaCha20-Poly1305).
  • API & Wire Protocol Reference — Complete JSON wire format, client commands, host events, and loopback REST API endpoints.

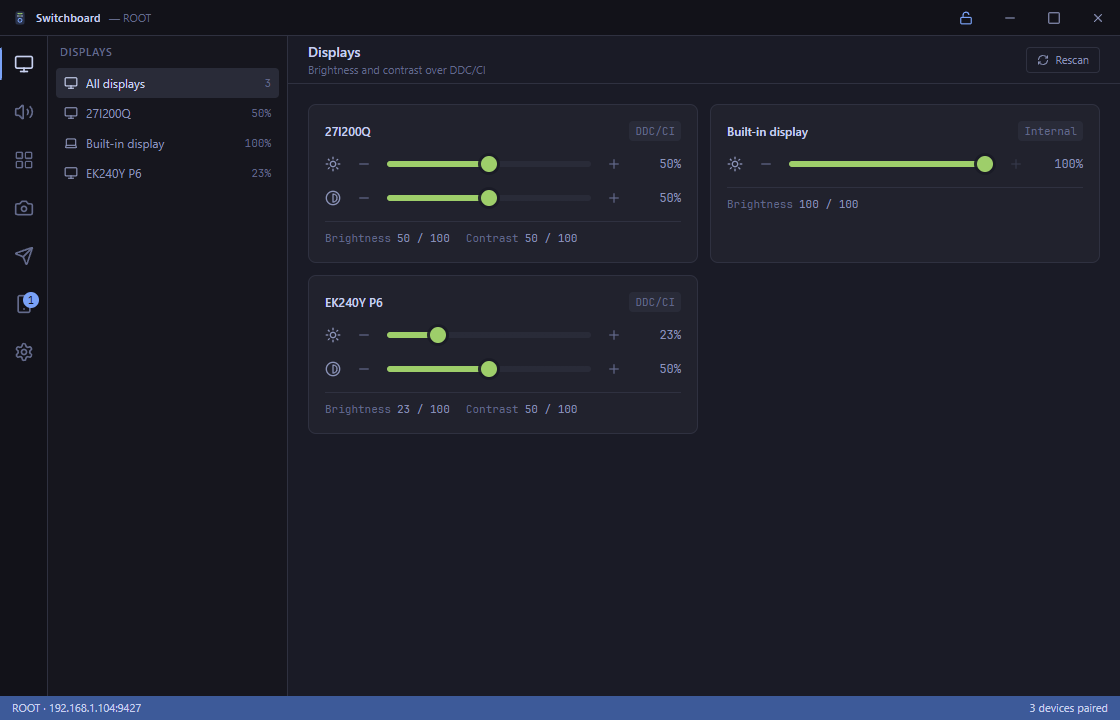

  • Displays & DDC/CI Hardware Controls — VESA MCCS monitor communication via Windows DXVA2 and WMI laptop display brightness control.
  • Audio Mixer & SMTC Transport — Windows Core Audio (WASAPI) session mixer, per-process sliders, and SMTC media transport controls.
  • Air Mouse (Remote Touchpad) — Sub-millisecond cursor navigation, multi-finger gesture recognition, and Windows SendInput injection.
  • Elgato Stream Deck Neo — 8-key hardware console replication with LCD infobar, touch points, and custom action triggers.
  • Encrypted File Transfer — Chunked P2P encrypted file streaming, SHA-256 verification, and Android Storage Access Framework (SAF) integration.
  • Troubleshooting & FAQ — Diagnosis and resolution for local network pairing, Windows Firewall configuration, and background tasks.

Core Capabilities​

  • Zero-Password Cryptographic Pairing: No accounts, usernames, or passwords. Connect in seconds via camera QR scan or a 6-character code.
  • Hardware Display Controls: Real-time brightness and contrast sliders for both external HDMI/DisplayPort panels (via DDC/CI) and laptop screens (via WMI).
  • Per-Application Volume Mixer: Adjust individual volume levels for Chrome, Spotify, Discord, or games independently from master audio.
  • Rich Media Transport: Synchronized playback control with album art extraction, track scrubbing, play/pause, and track skip.
  • Wireless P2P File Transfer: High-speed, chunked local file transmission with resume capability and zero telemetry.
  • Air Mouse & Touchpad: Turn your phone into an ultra-responsive touchpad with pointer acceleration, left/right clicks, and scrolling.
  • Switchboard Deck (Stream Deck Neo): Landscape-mode 8-key physical console emulator for launching apps, macros, and controlling system states.
  • Material Design 3 Expressive: Beautiful, fluid mobile interface with dynamic wallpaper theming (Material You) and dark/light modes.
